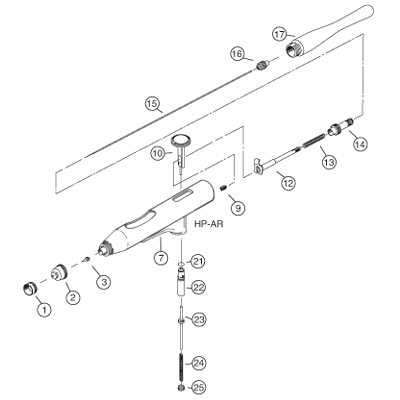

Iwata Revolution AR - Parts
Hover over or click on parts digram or parts table for more info.
Product Info
User Guide PDF Printable Parts Diagram PDF
Note: The optional 0.5mm parts can be used with the 0.3mm needle, which cannot be changed.
IWS-7012 - Needle Cap for Revolution AR / BR / TR0 / TR1 / KTR (same as 7013)IWS-7022 - 0.3mm Nozzle Cap for Revolution AR/BR/TR1/K-TRIWS-7042 - 0.3mm Fluid Nozzle for Revolution AR/BR/TR1/K-TRIWS-706a - Body for Revolution ARIWS-1257 - Needle Packing Screw with PTFE solvent-proof Needle Packing for HP-AP/BP/SBPIWS-6121 - Main Lever (trigger) for BCS / CS / SBS / BS / BCR / CR / BR / ARIWS-1157 - Needle Chucking Guide for HP-AP / BP / SBP / AH / BH / AR / BRIWS-1351 - Needle Spring for HP-CH / BS / CS / SBS / BCR / CR / BR / AR / K-CH / K-CSIWS-7701 - Spring Guide for Revolution & HP-CP / BCP / AH / BH / CH / K-CH / K-CSIWS-7173 - 0.3mm Fluid Needle for Revolution AR/BRIWS-1202 - Needle Chucking Nut for HP-C/BC/BC2, Eclipse & RevolutionIWS-7191 - Handle for Revolution BCR/CR/BR/ARIWS-5801 - Packing Air Valve Piston O-Ring for Micron, Revolution, EclipseIWS-6081 - Air Valve Guide Body with O-Ring for Eclipse & RevolutionIWS-6091 - Air Valve Plunger with O-Ring for Eclipse & RevolutionIWS-0351 - Air Valve Spring for HP, Hi-Line, Revolution, Eclipse BCSIWS-7111 - Valve Guide Screw for RevolutionIWS-7011 - Needle Cap for Revolution CR / BCR / SAR / TR2IWS-7021 - 0.5mm Nozzle Cap for Revolution CR / BCR / SAR / TR2IWS-7041 - 0.5mm Fluid Nozzle for Revolution CR / BCR / SAR / TR2IWS-7023 - 0.2mm Nozzle Cap for Revolution TR0IWS-7043 - 0.2mm Fluid Nozzle for Revolution TR0
# Code Optional Parts Price
01 IWS-7011 * Needle Cap 5.10 Add to Cart
02 IWS-7021 * 0.5mm Nozzle Cap 10.99 Add to Cart
03 IWS-7041 * 0.5mm Nozzle 16.30 Add to Cart
* Above 3 should be fitted together 32.39 Add All 3 to Cart
02 IWS-7023 ** 0.2mm Nozzle Cap 10.99 Add to Cart
03 IWS-7043 ** 0.2mm Nozzle 32.60 Add to Cart
** Above 2 should be fitted together 43.59 Add All 2 to Cart
E-QD1 *** Quick Disconnect Body 10.99 Add to Cart
E-QDP-IWATA *** Quick Disconnect Plug 4.66 Add to Cart
*** Above 2 should be fitted together 15.65 Add All 2 to Cart
IWA-1552 Preset Handle 29.50 Add to Cart
IWA-FA450 Pistol Grip Moisture Filter 14.50 Add to Cart
IWA-J002 Badger Hose Adaptor 7.00 Add to Cart
IWA-J00A Aztec Hose Adaptor 7.00 Add to Cart
IWA-K250 External Micro Air Control (MAC) Valve 21.95 Add to Cart
PA-A-188 Adaptor Iwata (1/8 BSP) to Paasche hose 4.60 Add to Cart
# Code Essential Parts Price
IWS-7651 Spanner 5.10 Add to Cart
01 IWS-7012 Needle Cap 5.10 Add to Cart
02 IWS-7022 0.3mm Nozzle Cap 10.99 Add to Cart
03 IWS-7042 0.3mm Nozzle 16.30 Add to Cart
07 IWS-706a Body 0.00
09 IWS-1257 Needle Packing Screw with PTFE solvent-proof Needle Packing 8.45 Add to Cart
10 IWS-6121 Main Lever (trigger) 10.99 Add to Cart
12 IWS-1157 Needle Chucking Guide 10.99 Add to Cart
13 IWS-1351 Needle Spring 5.10 Add to Cart
14 IWS-7701 Spring Guide 8.45 Add to Cart
15 IWS-7173 0.3mm Needle 8.45 Add to Cart
16 IWS-1202 Needle Chucking Nut 5.10 Add to Cart
17 IWS-7191 Handle 16.30 Add to Cart
21 IWS-5801 Packing Air Valve Piston O-Ring 8.45 Add to Cart
22 IWS-6081 Air Valve Guide Body with O-Ring 8.45 Add to Cart
23 IWS-6091 Air Valve Plunger with O-Ring 5.10 Add to Cart
24 IWS-0351 Air Valve Spring 5.10 Add to Cart
25 IWS-7111 Valve Guide Screw 5.10 Add to Cart
