Sparmax TC-620X Quantum Orange Compressor
[C-TC-620X-QUO]

£274.99 inc.VAT
(£229.16 ex.VAT)

0 in cart
Sparmax TC-620X Quantum Orange Compressor

Add some zest to your workbench with the latest addition to the Sparmax range of compressors. The Quantum Orange Compressors feature everything you need for hobby painting to high volume spraying, finished in a striking Orange Metallic Pearl colour. They also feature two Quick Releases to disconnect your hose with ease. Exclusive to Airbrushes.com and our resellers.

The Sparmax TC-620X Quantum Orange is a powerful automatic twin piston compressor with a 2.5L air tank. It has ample power for any airbrushing task and is suitable for professional airbrush users doing general or extended airbrush applications. With its 2.5L air tank it provides smooth and consistent airflow.

Being automatic, when the air tank pressure falls below 40psi, the compressor runs to recharge the tank back to 60psi and then switches off - the compressor runs to the demand of the air tank, rather than switching on/off every time the airbrush trigger is pressed.

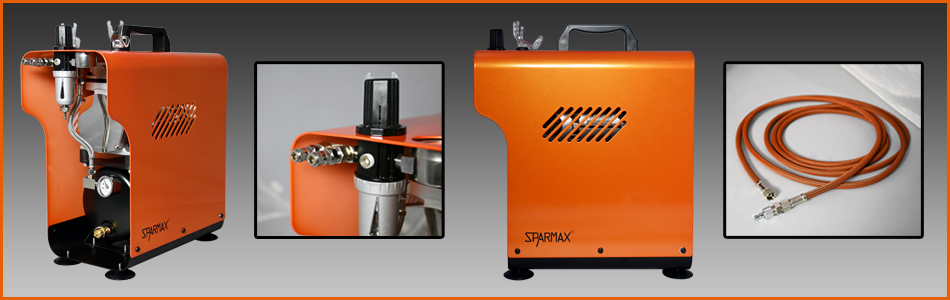

As well as its high quality Pearl Orange finish, the TC-620X Quantum Orange is enclosed in a sturdy steel case with carrying handle, making storing and transporting more convenient, allowing you to personalise its surface in any way you want.

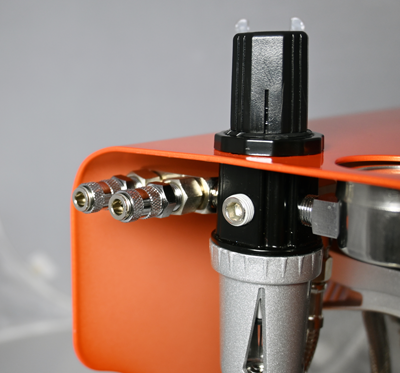

The TC-620X Quantum Orange is fitted with a mounted adjustable pressure regulator, moisture filter, twin airbrush holders and an air tank mounted pressure gauge. This also features 2 x 1/8 BSP air outlets; both with quick disconnect fittings (female) for easy disconnection of the hose. Two 3M braided hoses are also included with quick disconnect (male) fittings. With the extra air outlet, you can now connect airbrushes beforehand and switch between the two with ease. This offers clean and stable air, controlled for your desired applications. Airbrush adaptors (Aztek, Badger, Paasche) are also supplied with this compressor.

Added feature! Includes 2 x air outlets, both with Quick Disconnect (female) fittings, plus 2 x 3M braided hoses with quick disconnect (male) fittings.

The TC-620X Quantum Orange features:

  • Exclusive Pearl Metallic Orange finish
  • Low maintenance, oil-less twin piston air compressor
  • 2.5 Litre storage tank with mounted pressure gauge
  • Working pressure from 0 psi to 60 psi (4.1bar)
  • Auto on/off switch: 2.8/4.1 bar (40/60psi)
  • Air flow: 23 - 32 lpm (0.81 - 1.14 cfm) at open flow
  • 1/6 HP Motor (135 Watt)
  • Time to charge 30 Sec. (no load)
  • Time to recharge 10 Sec. (no load)
  • Adjustable pressure regulator
  • Moisture filter
  • Pressure gauge
  • 2 x outlets on compressor with 2 x Quick Disconnect (female) fittings
  • 2 x 3M Braided hoses with Quick Disconnect (male) fittings
  • Airbrush adaptors included (Aztek, Badger, Paasche)
  • 2 x Detachable airbrush holders
  • Noise level: 54 decibels
  • Size: L33 x W18 x H34.5 cm (13" x 7" x 13.58")
  • Weight: 10.4 kgs (23 lbs)
  • Voltage: 220-240V 50Hz
  • Duty cycle: 60 minutes continuous use. Please allow the motor to rest for at least 20 minutes after each cycle of continuous use.

Suitable for running two of the following airbrushes (or similar) concurrently:

  • Sparmax SP35, SP35C, MAX-3, MAX-4, HB-040, SP-20X, DH-125
  • Sparmax GP-35, GP-50
  • Premi Air G35
  • Neo for Iwata
  • Iwata Revolution
  • Iwata Eclipse (except G3, G5, G6)
  • Iwata HP
  • Iwata HP-Plus
  • Iwata Hi-Line
  • Iwata Hi-Line HP-TH (will only run one)
  • Iwata Custom Micron
  • Iwata Kustom series (or one HP-TH)
  • Paasche CC
  • Paasche F
  • Paasche Talon
  • Paasche V
  • Paasche VJR
  • Paasche VSR90
  • Paasche VV
  • Badger 100
  • Badger 150 (except with HD head)

Sparmax TC-620X Manual:

Suitable for running one of the following airbrushes, small spray guns or similar:

  • Sparmax GP-850
  • Iwata Revolution BR, CR, SAR, BCR, TR1, TR2, M1, M2
  • Iwata Eclipse G3
  • Iwata Eclipse G5
  • Iwata Eclipse G6
  • Iwata Hi-Line HP-TH
  • Iwata RG-3
  • Iwata LPH-50
  • Paasche H
  • Paasche HS
  • Paasche VL
  • Paasche VLS
  • Paasche MIL-SET
  • Paasche AEC
  • Paasche 200T
  • Badger 150 HD
  • Badger 155
  • Badger 175
  • Badger 200
  • Badger 250
  • Badger 260
  • Badger 350
  • Asturo C3

If you require further advice on choosing the most suitable equipment for you needs and budget please contact us.

This Sparmax TC-620X compressor is warranted by The Airbrush Company Ltd against manufacturing defects of materials or workmanship for a period of 2 years from the original date of purchase. This warranty does not cover pistons and automatic switches, since these parts need to be replaced occasionally due to normal wear.
